Automated high-lift / stacker storage system |
|
|
|
|
| |
| Description |

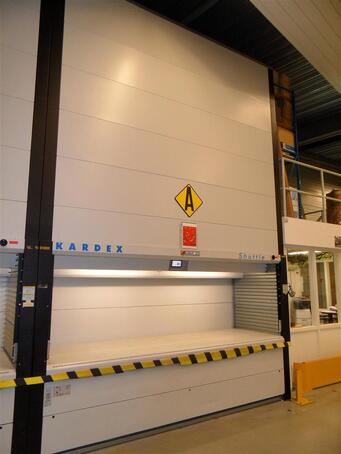

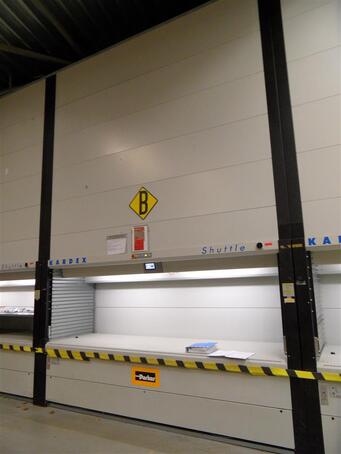

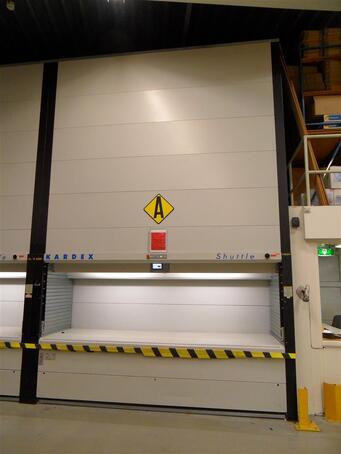

KARDEX Shuttle XP 500
DYNSTO can offer you in very good condition KARDEX
Shuttle XP 500 , 3050 x 864 — 4950 mm — 46 trays , Y.o.B : 2006
KARDEX Shuttle® XP
Optimised and flexible High density storage

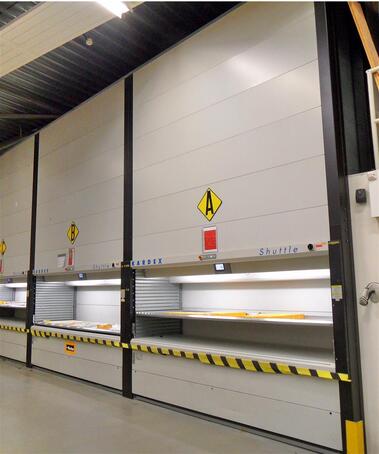

KARDEX Shuttle® XP is an Automated high-lift/stacker storage system modular in construction,
which works on the principle of goods to person?.
Maximum height can be used on a Minimum floor area.
- Increases storage area
- Increases productivity
- Allows high speed for high order picking
We can offer you in very good condition KARDEX
Shuttle XP 500 , 3050 x 864 — 4950 mm — 46 trays , Y.o.B : 2006
• Maximum total capacity of the KARDEX Shuttle XP : 2 x 33800 kg
• Maximum tray capacity : 7 tray’s MEDIUM , 215 kg
6 tray’s STRONG , 300 kg
33 tray’s MEDIUM TYPE 2 , 465 kg

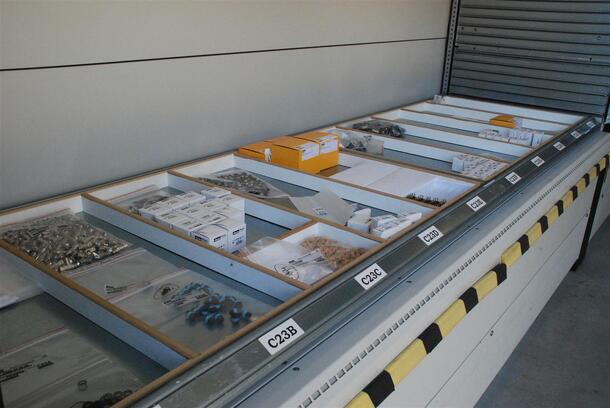

• Tray dimensions : 3050 x 864 mm
• Machine dimensions : Wide x Depth x Height : 3380 x 3074 x 4950 mm
• Footprint of the system : 10.39 m2
• Capacity with 46 trays : 121,22 m2 , every tray is appx. : 2,592 m2
• Electronic volume measuring system in 25 mm screen (grid)

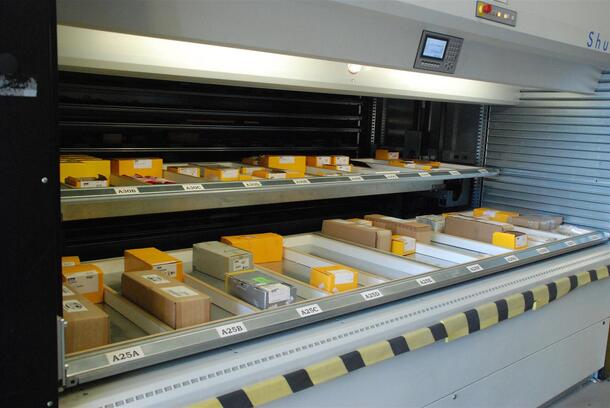

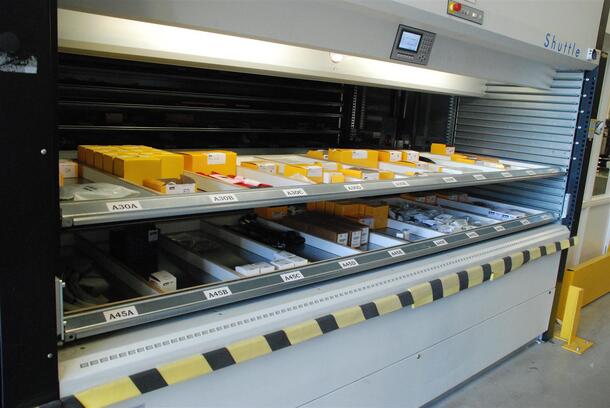

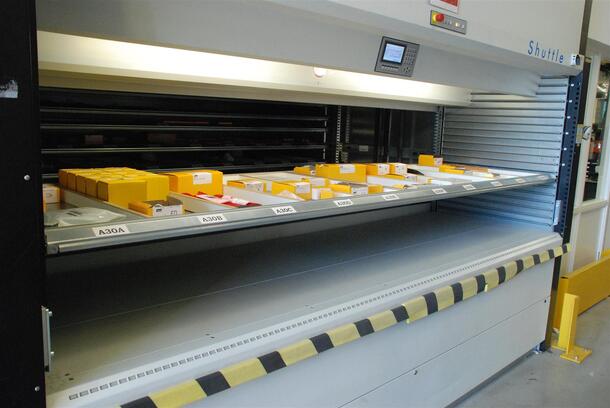

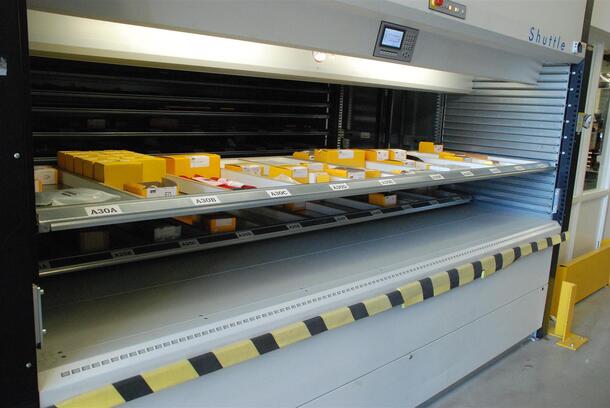

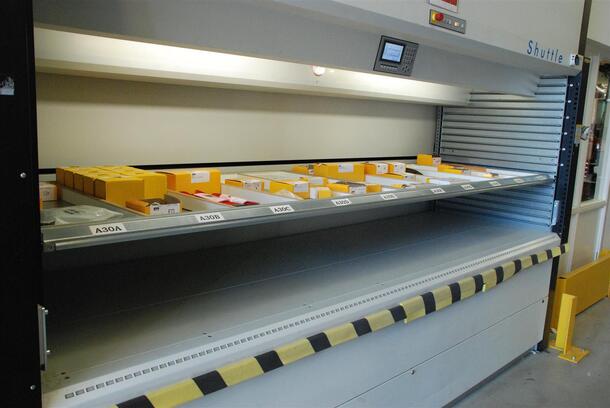

• An access opening with sliding doors to protect people and stored goods

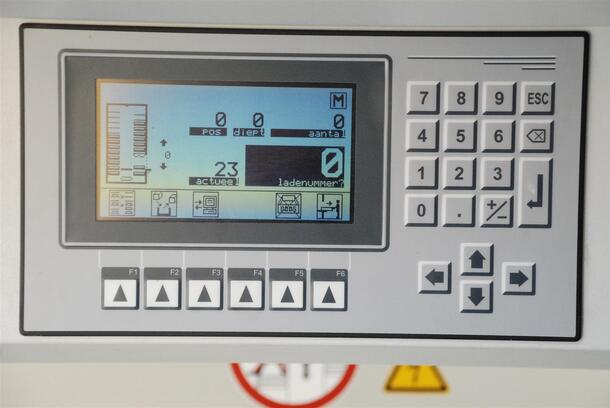

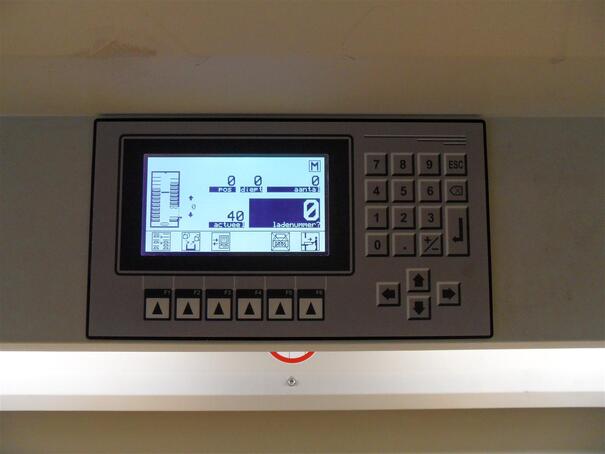

• Control OP 2000 with graphic display
• 30 Position indicator lamps for indication of the product position
• Anti-dazzle lighting above access point
• Personal Key-code possibility
• Containers locking / security
• Use of toothed-belt for minimum noise
• Use of toothed-belt for fastest order picking
• The working positions can be adjusted individually depending on the body size
• Distances can be realised in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
• Weight management controls the weight of the tray/Shuttle
• Weight management controls the speed regulation

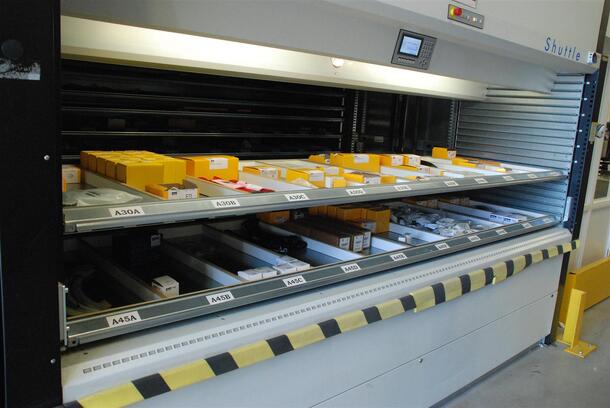

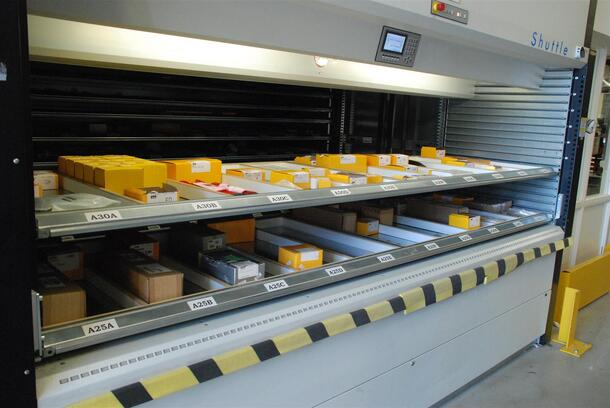

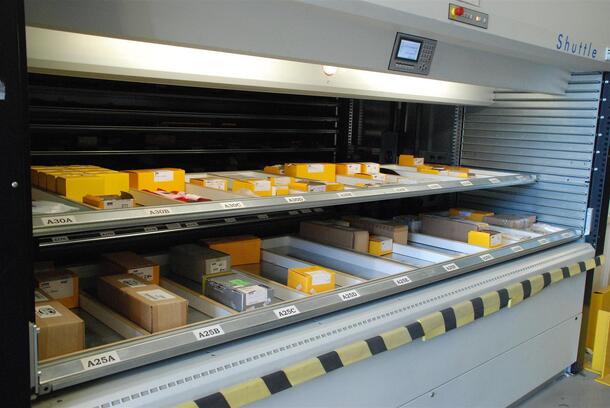

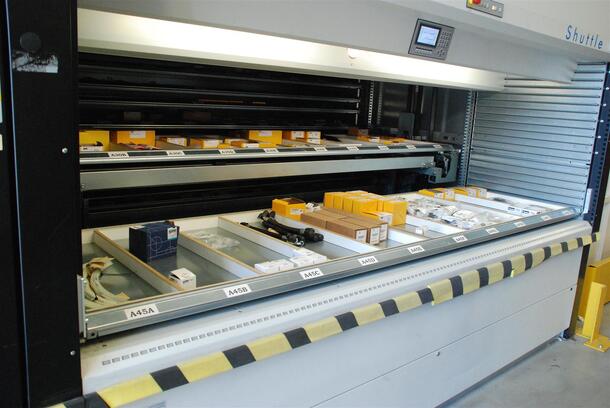

• Unique multi tray position system (2 trays in the access point)
Options : Powerpick Fastorder |
|
| |
